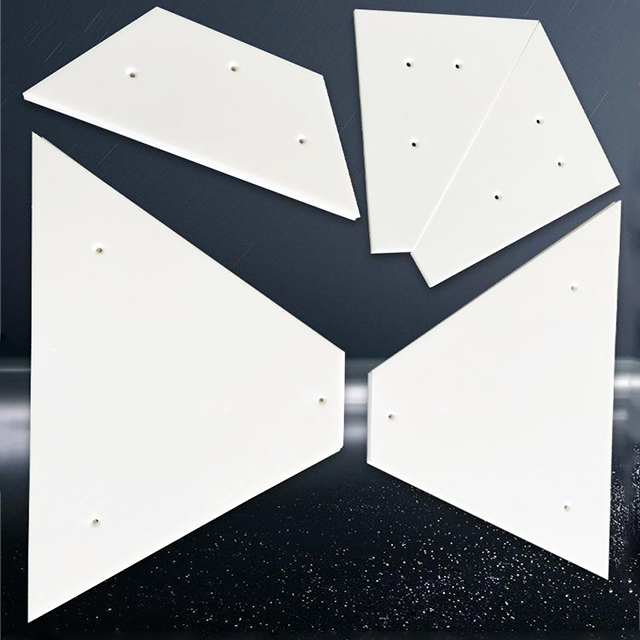

UPEsheet Polyethylene Self-Lubricating UHMWPE Truck Bed Granary And Bunker Liner Silo Liner Plate

Good lubrication and exceptional low abrasion coefficient character of UHMWPE sheet make it to be choosed to be the lining of many chute , coal bunker , truck liner , mixing silo lining and other project whose conveyor cohere easily when it been unloaded and delivered .

Availability:



Inquire Add to Basket

Product Description

UPEsheet Polyethylene Self-Lubricating UHMWPE Truck Bed Granary And Bunker Liner Silo Liner Plate with a very low friction co-efficient and zero water absorption, UHMWPE lining are widely used to eliminate caking, bridging and hanging up of a variety of bulk materials in application extending through steel and cement production, mining and power generation. In new applications the use of UHMWPE liners facilitates shallower chute and hoper angles providing greater design freedom whilst in existing installations the simulation of steeper angles through a low friction co-efficient is often the solution to plant blockage problems.

Advantage of UPEsheet Polyethylene Self-Lubricating UHMWPE Truck Bed Granary And Bunker Liner Silo Liner Plate:

1.Abrasive resistance which always have in thermoelectricity polymer.
2.Best shock resistance even in low temperature.
3.Low frictional factor, and well sliding bearing material.
4.Lubricity( no caking, in adhesion) .
5.Best chemical corrosion resistance and stress craze resistance.
6.Excellent machinery process ability .
7.Lowest water absorption(<0.01%) .
8.Paragon electric insulativity and antistatic behavior .
9. Nice high energy radioactive resistance.
10.Density is lower than other thermoplastics (< 1g/m3).
11.Long using temperature range: -269°C--90°C.

The Application of UHMWPE Sheet:

UHMWPE continues to find increasing industrial applications:
The lining chutes and hoppers for products such as sand, quarry, aggregate and concrete or any other highly abrasive moving product.
The food production environments where high volumes of containers or cans need to be guided along conveyors.
The marine fender pad
Synthetic ice
Crane outrigger pad
Automotive manufacturing
Radiation shielding.
UHMWPE plate is easy to machine. The engineering plastic can be machined into virtually anything, from small gears and bearings plates to huge wear guides that until recently were only possible with metals. It not only outperforms metal in abrasion applications, it's also easier to machine and therefore cheaper. This versatile plastic can be milled, planed, sawed and drilled to create a huge variety of parts at a very competitive price. What makes UHMWPE plate such a distinctive and useful engineering plastic is its combination of excellent properties.
