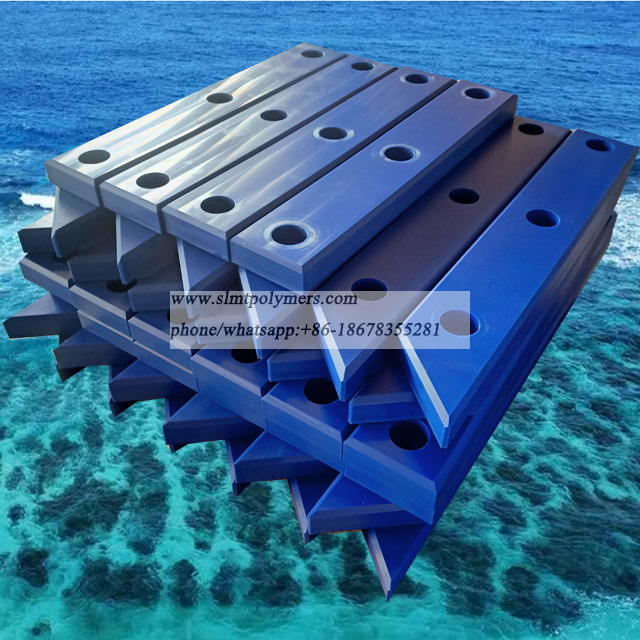

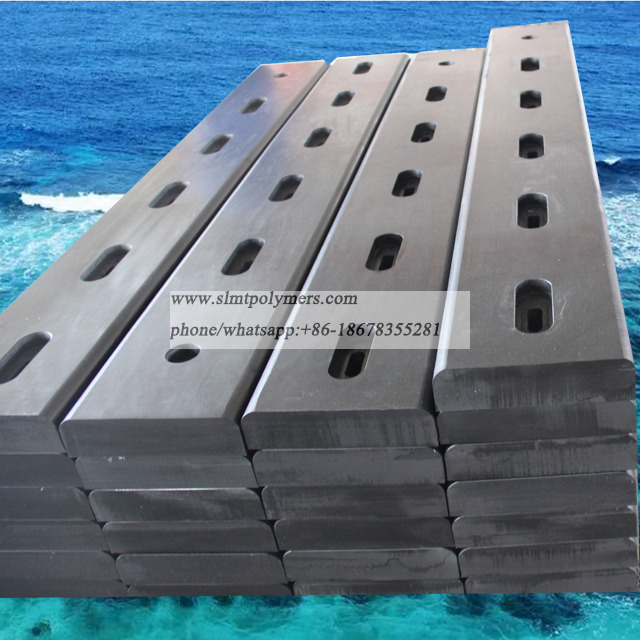

UHMW-PE Pads

Uhmwpe marine dock bumper pad could avoid the impact damage between ships and dock . Because of the pe plastic marine fender face pad fender high impact resistance performance, HDPE / UHMWPE marine dock bumper pads instead of the traditional steel ones is widely used in ports and docks at home and abroad.

Availability:



Inquire Add to Basket

Product Description

Advantages of UHMW-PE Pads:

1. Wear-Resistant Surface
Marine fender pad of UHMW-PE material outwear hardened steel. Cuts hour-glass wear on pilings from vertically moving "camels".

2. Nil Water Absorption.
Marine fender pad of UHMW-PE material no swelling or deterioration from water permeation.

3. Chemical- and Corrosion-Resistant.
Marine fender pad of UHMW-PE material withstands salt water, fuel and chemical spills. Chemically Inert does not leach chemicals into waterways, disturbing fragile ecosystems.

4. Performs in Weather Extremes.
Sub-zero conditions do not degrade performance. Marine fender pad of UHMW-PE material retains key physical properties to -260 centigrade. UHMWPE material is UV-resistant, which increases wear life in seaport exposures.

Applications of UHMW-PE Pads:
Bridge, Marina, Pier, Vessel, Platform, Industrial, Bridge buttress protection, Beltings on workboats and Other.

In marine situations UHMW PE Fenders will provide durable and cost-effective alternatives to traditional materials

Specifications of UHMW-PE Pads :

Project name	Unit	Standard
Impact strength	KJ/m2	≥140
Water absorption	%	≤0.01
Compressive strength	Mpa	≥30
Ball indentation hardness	N/mm2	≥20
Friction coefficient		0.11-0.17
Abrasion loss	G/cm2	3.8×10-4
Heat distortion temperature	°C	85°C
