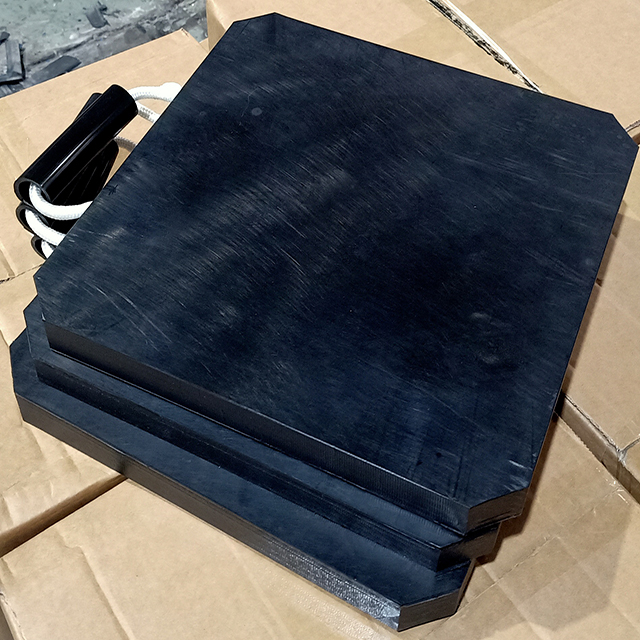

Source Impact Resistant Plastic Crane Outrigger Pads

Langrui engineered plastic cribbing plates and outrigger pads are lightweight, strong, and solid designed tu support your crane, and can be easily handled and positioned byp one persn or two. It can not be warped like wood or corroded like steel. It won't break in the long guaranteed time and obviously could not attract thieves.
Availability:

Source Impact Resistant Plastic Crane Outrigger Pads


Advantages of  Outrigger Pads:

Do not absorb moisture and will not swell up over time due to exposure outdoors.
2.  Good impact intensity, Do not lose their impact strength over time.
3.  Good breaking elongation,so they will bend but not break under extreme loads.
4.  Non-stick surface, easy to clean.
5.  Corrosion and chemical resistant.
6.  Can work in in adverse weather conditions.
7.  Durable & Long Lasting, Cost Efficient compared to Steel or Aluminum.
8.  Amazingly light compared to steel pads, and easier to mount, replace.
9.  Will not rot,crack,splinter, or absorb moisture, safer to use in the field compared to other wood based pads.
10.Lower maintenance costs.
11.Storage-Friendly.


Benefits of UHMWPE crane outrigger pads:

Outperforms Wood and Other Plastic Materials
Reliably Strong & Rigid Support
Easy to Use
Ergonomic Safety
Zero Splinters
Zero Rot or Absorption
Round Pads Roll
Outrigger Foot Security
Thickness()(inch) Pad size()(inch) Part Number() 45 o Load()(ton) Vertical Load() PadWeight()
1" Square 18X18 X1T1818 14 tonnes 25 tonnes 5.00kgs
1" Rectangle 20X24 X1T2024 16 tons 27tons 7.63kgs
1"Square 24X24 X1T2424 16 tonnes 24 tonnes 9.15kgs
1"Square 30X30 X1T3030 18 tonnes 36 tonnes 14.3kgs
1"Square 36X36 X1T3636 19 tonnes 42 tonnes 20.6kgs
1"Square 48X48 X1T4848 22.5 tonnes 59 tonnes 36.62kgs
1"Round 30"Dia X1TR30 12 tonnes 28 tonnes 11.23kgs
1"Round 36"Dia X1TR36 15 tonnes 32 tonnes 16.16kgs
1"Round 48"Dia X1TR48 18 tonnes 45 tonnes 28.75kgs
1-1/2" Square 18X18 X1.5T1818 14 tonnes 25 tonnes 7.73kgs
1-1/2" Square 24X24 X1.5T2024 16 tonnes 27 tonnes 13.73kgs
1-1/2" Square 30X30 X1.5T3030 19 tonnes 37 tonnes 21.46kgs
1-1/2" Square 36X36 X1.5T3636 20 tonnes 43 tonnes 31.00kgs
1-1/2" Square 48X48 X1.5T4848 23 tonnes 59 tonnes 55.00kgs
1-1/2" Round 30"Dia X1.5TR30 14 tonnes 28 tonnes 16.85kgs
1-1/2" Round 36"Dia X1.5TR36 15 tonnes 32 tonnes 24.24kgs
1-1/2" Round 48"Dia X1.5TR48 18 tonnes 45 tonnes 43.13kgs
2"Square 18X18 X2T1818 14 tonnes 26 tonnes 10.30kgs
2"Rectangle 20X24 X2T2024 18 tonnes 28 tonnes 15.26kgs
2"Square 24X24 X2T2424 18 tonnes 28 tons 18.31kgs
2"Square 30X30 X2T3030 19.5 tonnes 38tonnes 28.62kgs
2"Square 36X36 X2T3636 20 tonnes 44 tonnes 41.20kgs
2"Square 48X48 X2T4848 25 tonnes 63 tonnes 73.25kgs
2"Round 30"Dia X2TR30 15 tonnes 30 tonnes 22.47kgs
2"Round 36"Dia X2TR36 16 tonnes 32 tonnes 32.33kgs
2"Round 48"Dia X2TR48 19 tonnes 45 tonnes 57.51kgs
2 -1/2" Square 24X24 X2.5T2424 17.5 tonnes 28 tonnes 22.89kgs
2 -1/2" Square 30X30 X2.5T3030 19 tonnes 39 tonnes 35.76kgs
2 -1/2" Square 36X36 X2.5T3636 20 tonnes 45 tonnes 51.50kgs
2 -1/2" Square 48X48 X2.5T4848 24 tonnes 60 tonnes 91.56kgs
2 -1/2" Round 30"Dia X2.5TR30 15 tonnes 29 tonnes 28.09kgs
2 -1/2" Round 36"Dia X2.5TR36 15.3 tonnes 33 tonnes 40.41kgs
2 -1/2" Round 48"Dia X2.5TR48 19 tonnes 46 tonnes 71.88kgs
3"Square 24X24 X3T2424 18 tonnes 29 tonnes 27.47kgs
3"Square 30X30 X3T3030 20 tonnes 40 tonnes 42.92kgs
3"Square 36X36 X3T3636 22 tonnes 47 tonnes 61.80kgs
3"Square 48X48 X3T4848 26 tonnes 66 tonnes 109.87kgs
3"Round 30"Dia X3TR30 15 tonnes 30 tonnes 33.70 kgs
3"Round 36"Dia X3TR36 16 tonnes 36 tonnes 48.49kgs
3"Round 48"Dia X3TR48 20 tonnes 51 tonnes 86.26kgs

Polyethylene crane leg pad easy to useIs the polyethylene material of the crane outrigger pad and the pump truck foot pad easy to usePerformance Analysis of Outrigger PadsUltra High Molecular Weight Polyethylene Sheet Crane Outrigger Plate Polyethylene Pad
