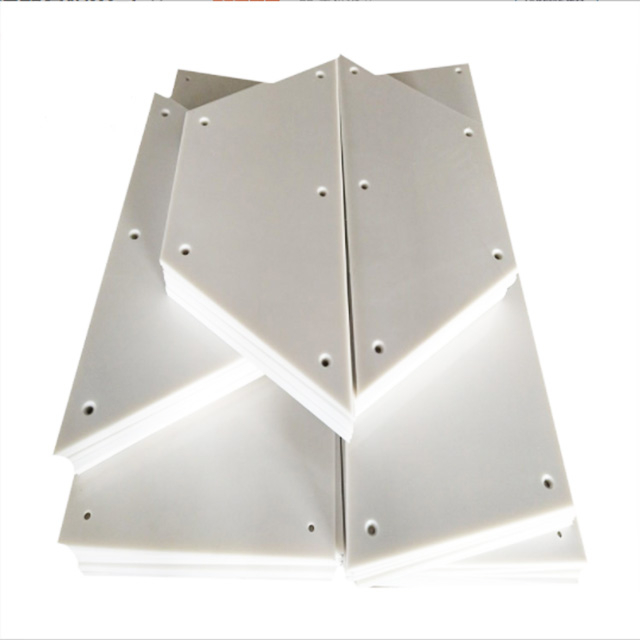

Material: UHMWPE, double color UHMWPE
Thickness: 6,8,10,12,15 ... (mm).
Length:1000mm. (any other length could be produced)
Features:
•The new ultra-high molecular liner developed by our company , the molecular weight of the modified materials are more than 3.5 million molecular weight , longer life,And the performance and advantages of ultra-high molecular material has been accepted and recognized by the absolute majority of users in various industries .
•Abrasion resistance, impact resistance , high lubricity , chemical resistance , low temperature resistance, excellent impact energy absorption,Excellent non- absorbent, non-sticky excellent , excellent health food nature .
Technical Specifications:
Diameter | |
Φ200 | Φ440 |
Φ220 | Φ460 |
Φ240 | Φ480 |
Φ260 | Φ500 |
Φ280 | Φ520 |
Φ300 | Φ540 |
Φ320 | Φ560 |
Φ340 | Φ580 |
Φ360 | Φ600 |
Φ380 | Φ620 |
Φ400 | Φ640 |
Φ420 | Φ600 |
Remark: Other special size can be made as customer's requested.
The Application of Tivar88 U-shape Wear Resistant Conveyor Liner Plate PE1000 Corrosion Resistant Trough Lining Sheet:
Radiation shielding.
The properties of UHMW-PE Liner :
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- | ≤0.16 |
Kinetic Friction Coefficient | -- | ≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |
