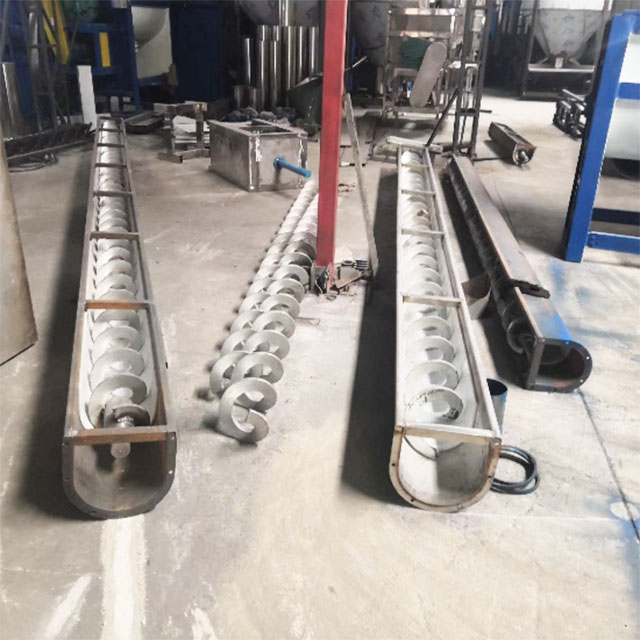

Screw Conveyor Liner Polyethylene Chute Lining Dump Truck Liner Sheet for Truck And Coal Liner

Good lubrication and exceptional low abrasion coefficient character of UHMWPE sheet make it to be choosed to be the lining of many chute , coal bunker , truck liner , mixing silo lining and other project whose conveyor cohere easily when it been unloaded and delivered .
Availability:

Material: UHMWPE, double color UHMWPE

Thickness: 6,8,10,12,15 ... (mm).
Length:1000mm.  (any other length could be produced)


Features:


•The new ultra-high molecular liner developed by our company , the molecular weight of the modified materials are more than 3.5 million molecular weight , longer life,And the performance and advantages of ultra-high molecular material has been accepted and recognized by the absolute majority of users in various industries .


•Abrasion resistance, impact resistance , high lubricity , chemical resistance , low temperature resistance, excellent impact energy absorption,Excellent non- absorbent, non-sticky excellent , excellent health food nature .


Technical Specifications:

Diameter
(mm)

Φ200

Φ440

Φ220

Φ460

Φ240

Φ480

Φ260

Φ500

Φ280

Φ520

Φ300

Φ540

Φ320

Φ560

Φ340

Φ580

Φ360

Φ600

Φ380

Φ620

Φ400

Φ640

Φ420

Φ600

Remark: Other special size can be made as customer's requested.

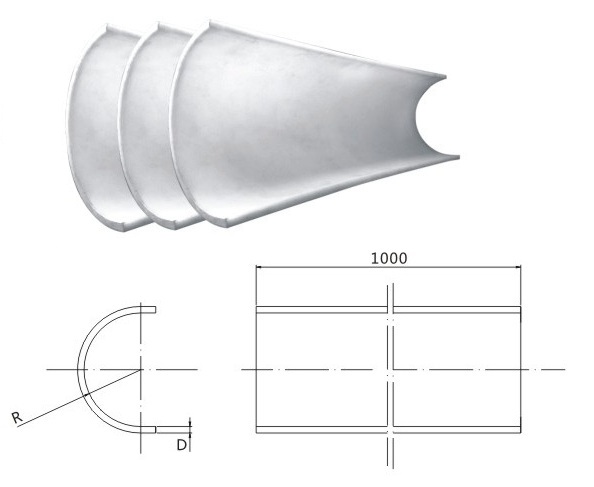

Double Color UHMWPE Liner Plate For Screw Conveyor

The Application of Tivar88 U-shape Wear Resistant Conveyor Liner Plate PE1000 Corrosion Resistant Trough Lining Sheet:

UHMWPE continues to find increasing industrial applications:
The lining chutes and hoppers for products such as sand, quarry, aggregate and concrete or any other highly abrasive moving product.
The food production environments where high volumes of containers or cans need to be guided along conveyors.
The marine fender pad
Synthetic ice
Crane outrigger pad
Automotive manufacturing

Radiation shielding.


The properties of UHMW-PE Liner :

Property

Unit

Value

Density

g/cm3

0.93-0.96

Average molecular weight

g/mol

3million- 10 million

Tensile strength (23°C in air)

MPa

22

Breaking strength

MPa

42

Tensile strain at break

%

600

Charpy impact strength (notched)

mJ/mm2

No break

Ball indentation hardness

N/mm2

42

Shore D hardness

--

65-70

Abrasion

%

70-80, steel = 100

Static Friction Coefficient

--

≤0.16

Kinetic Friction Coefficient

--

≤0.10

Water Absorption

--

NIL

Elongation at break at 23 degress

%

≥300

Temperature resistance

°C

-269 to +85

Melt Temperature

°C

130-140


PE1000 UHMWPE Bulk Material Wear Cone Chute Liner conveyor silo bunker wear liner sheet
