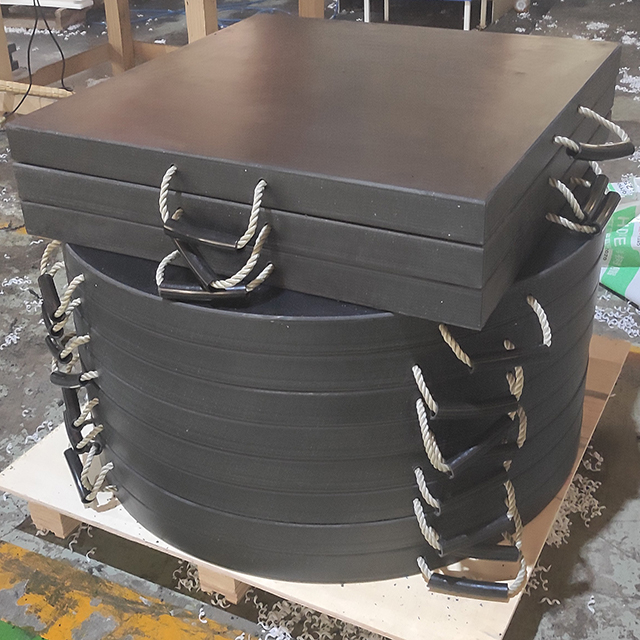

Safety Lightweight Plastic Crane Outrigger Pads

Langrui engineered plastic cribbing plates and outrigger pads are lightweight, strong, and solid designed tu support your crane, and can be easily handled and positioned byp one persn or two. It can not be warped like wood or corroded like steel. It won't break in the long guaranteed time and obviously could not attract thieves.

Availability:



Inquire Add to Basket

Product Description

Safety Lightweight Plastic Crane Outrigger Pads

Advantages of Outrigger Pads:

Do not absorb moisture and will not swell up over time due to exposure outdoors.
2. Good impact intensity, Do not lose their impact strength over time.
3. Good breaking elongation,so they will bend but not break under extreme loads.
4. Non-stick surface, easy to clean.
5. Corrosion and chemical resistant.
6. Can work in in adverse weather conditions.
7. Durable & Long Lasting, Cost Efficient compared to Steel or Aluminum.
8. Amazingly light compared to steel pads, and easier to mount, replace.
9. Will not rot,crack,splinter, or absorb moisture, safer to use in the field compared to other wood based pads.
10.Lower maintenance costs.
11.Storage-Friendly.

Benefits of UHMWPE crane outrigger pads:

Outperforms Wood and Other Plastic Materials
Reliably Strong & Rigid Support
Easy to Use
Ergonomic Safety
Zero Splinters
Zero Rot or Absorption
Round Pads Roll
Outrigger Foot Security

Thickness()(inch)	Pad size()(inch)	Part Number()	45 o Load()(ton)	Vertical Load()	PadWeight()
1" Square	18X18	X1T1818	14 tonnes	25 tonnes	5.00kgs
1" Rectangle	20X24	X1T2024	16 tons	27tons	7.63kgs
1"Square	24X24	X1T2424	16 tonnes	24 tonnes	9.15kgs
1"Square	30X30	X1T3030	18 tonnes	36 tonnes	14.3kgs
1"Square	36X36	X1T3636	19 tonnes	42 tonnes	20.6kgs
1"Square	48X48	X1T4848	22.5 tonnes	59 tonnes	36.62kgs
1"Round	30"Dia	X1TR30	12 tonnes	28 tonnes	11.23kgs
1"Round	36"Dia	X1TR36	15 tonnes	32 tonnes	16.16kgs
1"Round	48"Dia	X1TR48	18 tonnes	45 tonnes	28.75kgs
1-1/2" Square	18X18	X1.5T1818	14 tonnes	25 tonnes	7.73kgs
1-1/2" Square	24X24	X1.5T2024	16 tonnes	27 tonnes	13.73kgs
1-1/2" Square	30X30	X1.5T3030	19 tonnes	37 tonnes	21.46kgs
1-1/2" Square	36X36	X1.5T3636	20 tonnes	43 tonnes	31.00kgs
1-1/2" Square	48X48	X1.5T4848	23 tonnes	59 tonnes	55.00kgs
1-1/2" Round	30"Dia	X1.5TR30	14 tonnes	28 tonnes	16.85kgs
1-1/2" Round	36"Dia	X1.5TR36	15 tonnes	32 tonnes	24.24kgs
1-1/2" Round	48"Dia	X1.5TR48	18 tonnes	45 tonnes	43.13kgs
2"Square	18X18	X2T1818	14 tonnes	26 tonnes	10.30kgs
2"Rectangle	20X24	X2T2024	18 tonnes	28 tonnes	15.26kgs
2"Square	24X24	X2T2424	18 tonnes	28 tons	18.31kgs
2"Square	30X30	X2T3030	19.5 tonnes	38tonnes	28.62kgs
2"Square	36X36	X2T3636	20 tonnes	44 tonnes	41.20kgs
2"Square	48X48	X2T4848	25 tonnes	63 tonnes	73.25kgs
2"Round	30"Dia	X2TR30	15 tonnes	30 tonnes	22.47kgs
2"Round	36"Dia	X2TR36	16 tonnes	32 tonnes	32.33kgs
2"Round	48"Dia	X2TR48	19 tonnes	45 tonnes	57.51kgs
2 -1/2" Square	24X24	X2.5T2424	17.5 tonnes	28 tonnes	22.89kgs
2 -1/2" Square	30X30	X2.5T3030	19 tonnes	39 tonnes	35.76kgs
2 -1/2" Square	36X36	X2.5T3636	20 tonnes	45 tonnes	51.50kgs
2 -1/2" Square	48X48	X2.5T4848	24 tonnes	60 tonnes	91.56kgs
2 -1/2" Round	30"Dia	X2.5TR30	15 tonnes	29 tonnes	28.09kgs
2 -1/2" Round	36"Dia	X2.5TR36	15.3 tonnes	33 tonnes	40.41kgs
2 -1/2" Round	48"Dia	X2.5TR48	19 tonnes	46 tonnes	71.88kgs
3"Square	24X24	X3T2424	18 tonnes	29 tonnes	27.47kgs
3"Square	30X30	X3T3030	20 tonnes	40 tonnes	42.92kgs
3"Square	36X36	X3T3636	22 tonnes	47 tonnes	61.80kgs
3"Square	48X48	X3T4848	26 tonnes	66 tonnes	109.87kgs
3"Round	30"Dia	X3TR30	15 tonnes	30 tonnes	33.70 kgs
3"Round	36"Dia	X3TR36	16 tonnes	36 tonnes	48.49kgs
3"Round	48"Dia	X3TR48	20 tonnes	51 tonnes	86.26kgs
