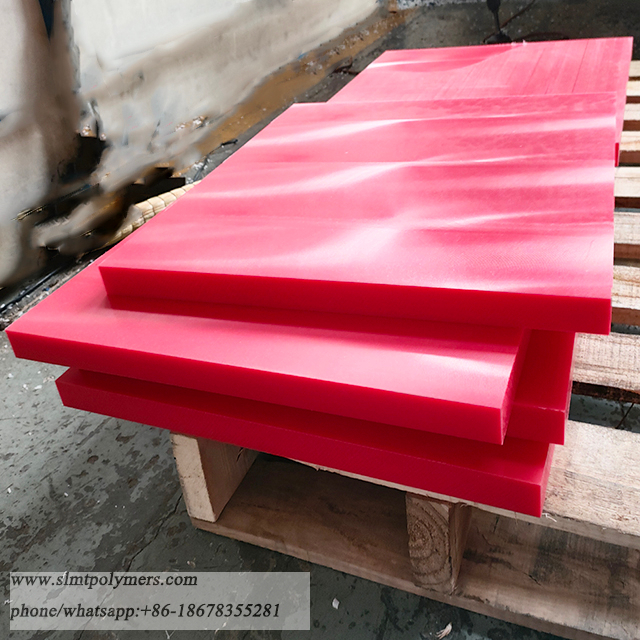

Red Color UHMW-PE SHEETS POLYMER BOARDS

UHMWPE is an impact-, chemical-, and moisture-resistant plastic with a low-friction surface, better abrasion resistance than PTFE, and more rigidity than other polyethylenes.
Availability:

UHMW-PE Technical Data:


1.Mechanical Properties
Item
Unit
Method
Index
Density
g/cm3
ASTM1505
0.94
Tensile Strength
MPa
D638
42
Tensile Strain at Break
%
D638
350
Charpy Impact Strength (Notched)
Kj/m2
D256
≥100
2.Thermal Properties
Item
Unit
Method
Index
Melting Point
ASTMD2117
136
Vicat Softening Temperature
ASTMD1512
134
Coefficient of Liner Thermal Expansion
10-4/℃
ASTMD648
1.5
Temperature of Deflection
ASTMD648
90
3.Electrical Properties
Item
Unit
Method
Index
Volume Resistivity
Ω.cm
ASTMD257
1017
Surface Resistivity
Ω
ASTMD257
1013
Dielectric Strength
kV/mm
ASTMD149
900
Dielectric Coefficient
106Hz
ASTMD150
2.3
4.Low Temperature Resistance:The brittle temperature is -140C when the molecular weight -0.5 million.
UHMW-PE even has mechanical strength under-269 if used with liquid nitrogen or liquid helium.



Product Description:

Size of UHMW Polyethylene Sheet :

2000X1000X(10-100)MM 2200X2000X(10-100)MM 2300X1200X(10-150)MM 2500X1300X(10-150)MM 3000X1500X(10-200)MM 3050X1220X(10-60)MM 4500X2000X(10-100)MM 4700X1200X(10-150)MM 5000X1300X(10-150)MM


Color of UHMW Polyethylene Sheet :virgin ,Black ,Green ,Yellow , Blue ,Orange and other color



UHMWPE Sheets Application: Medical equipment components, seals, cutting plates, sliding profiles. Widely used in industries such as chemical, mechanical, chemical, power, clothing, packaging, and food. Widely used in gas transportation, water supply, sewage treatment, agricultural irrigation, fine particle solid transportation in mines, as well as in fields such as oil fields, chemical industry, and postal and telecommunications communication, it has been widely applied, especially in gas transportation.

Virgin UHMW (polyethylene) Pure Uhmwpe Plastic Sheet Board (1)Blue Anti Abrasion Polyethylene Plastics 3000x1200mm Uhmwpe Sheet (3)Yellow 4x8 2x8 Plastic Uhmwpe Sheet PE1000 Board (2)Pe1000 Green Wear Strip Uhmwpe Sheet UPE Board (1)
