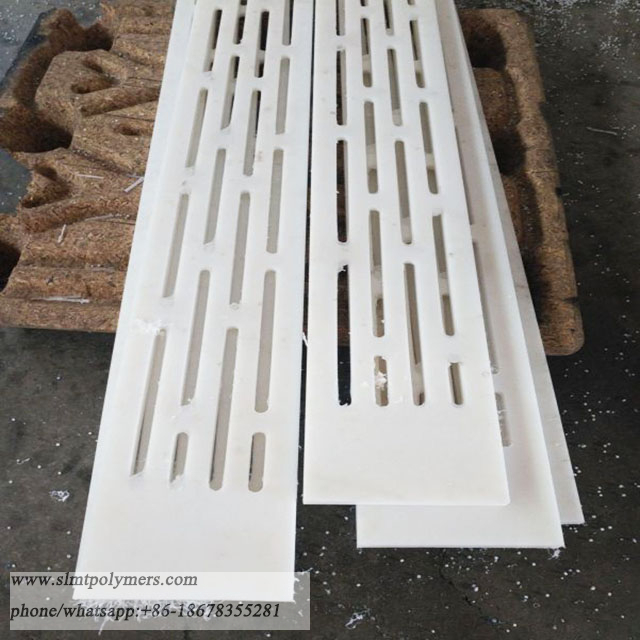

Paper Machine Use UHMW PE Low Vacuum Suction Box Cover Top Plate


UHMWPE Sheet Applications:

Dewatering elements

Foil blades

Suction box tops

Vacuum forming boards
Availability:

Key Features and Benefits of UHMWPE Suction tops Plus:


Impact strength - it is virtually unbreakable


Light weight - easy to handle without special equipment


Electrical insulation - it is a good insulator


Weatherproof - it doesn't absorb water


Chemical resistance - resists corrosive chemicals (Sulphuric Acid, Caustic Soda)


Abrasion resistance - rated better than carbon steel for sliding abrasion applications


Items

Unit

Value

Specific Gravity

g/cm³

0.96

Max Continuous Operating Temp

°C

80

Max Short Term Operating Temp (3-4hrs)

°C

130

Tensile Strength

Mpa

23

Co-efficient of thermal expansion

m/(m.k) x 10¯6

150-230

Dielectric Strength

KV/mm

45

Surface Resistivity

Ohms

>1014

Relative Abrasion Loss by Sand Slurry


70

UHMWPE Suction Box Top Plate UHMWPE Dewatering Elements (3)UHMWPE Suction Box Top Plate UHMWPE Dewatering Elements (4)
