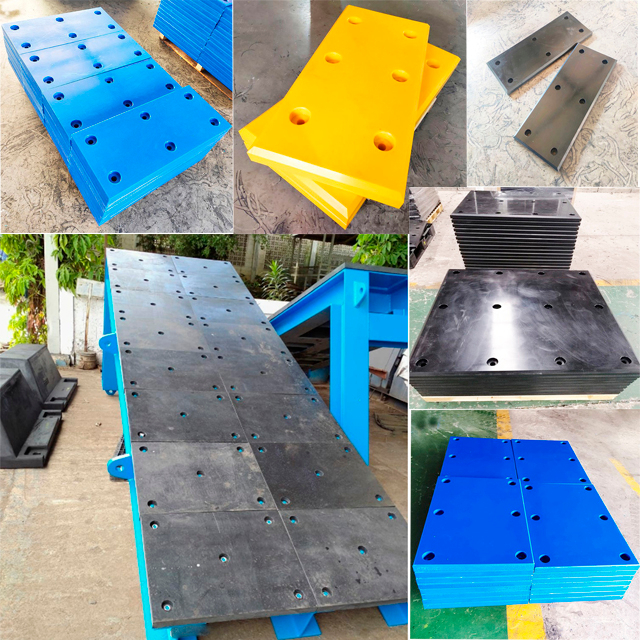

Marine Fender Pads UHMWPE Fender Pads HDPE Marine Grade Plastic Sheet UHMWPE Fender Sliding Panel

Uhmwpe marine dock bumper pad could avoid the impact damage between ships and dock . Because of the pe plastic marine fender face pad fender high impact resistance performance, HDPE / UHMWPE marine dock bumper pads instead of the traditional steel ones is widely used in ports and docks at home and abroad.
Availability:

Marine Fender Pads UHMWPE Fender Pads HDPE Marine Grade Plastic Sheet UHMWPE Fender Sliding Panel are processed from ultrahigh molecular weight polyethylene (UHMWPE) material, which has an extremely low coefficient of friction and excellent wear resistance, uv and ozone resistance, corrosion resistance and will not rot or crack when soaked in water for a long time.


Marine Fender Pads UHMWPE Fender Pads HDPE Marine Grade Plastic Sheet UHMWPE Fender Sliding Panel protect hull and wharf structures, do not damage boats like rubber or wood, and are easy to install and clean.


Technical data:
PropertyUnitValue
Densityg/cm30.93-0.96
Average molecular weightg/mol3million- 10 million
Tensile strength (23°C in air)MPa22
Breaking strengthMPa42
Tensile strain at break%600
Charpy impact strength (notched)mJ/mm2No break
Ball indentation hardnessN/mm242
Shore hardness--65-70
Abrasion%70-80, steel = 100
Static Friction Coefficient--
≤0.16
Kinetic Friction Coefficient--
≤0.10
Water Absorption--NIL
Elongation at break at 23°C%≥300
Temperature Resistance°C-269 to +85
Melt Temperature°C130-140


Advantages of
Marine Fender Pads UHMWPE Fender Pads HDPE Marine Grade Plastic Sheet UHMWPE Fender Sliding Panel:

1. Low friction coefficient
2.High wear resistance
3. Strong impact resistance
4. Self lubricating
5. Corrosion resistance
6. Temperature resistance (-100ºC to 80ºC)
7. Anti-aging
8. Resistant to ozone
9.Absorb vibration and noise
10. High recycling rate
11.Easy to install and clean
