HDPE Boards Used for Playgrounds Educational Panels Sandboxes

Two color HDPE sheet is mainly for outdoor children's kitchen units, as well as teaching aids such as the brightly coloured outdoor wall clock for teaching time,most popular for playground equipment.

Availability:



Inquire Add to Basket

Product Description

The properties of HDPE Sheets:

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore D hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.16
Kinetic Friction Coefficient	--	≤0.10
Water Absorption	--	NIL
Elongation at break at 23 degress	%	≥300
Temperature resistance	°C	-269 to +85
Melt Temperature	°C	130-140

Application of Hdpe Sheet:

/ Food storage and freezing equipment
/ Cutting board, kitchen furniture
/ Processing protection in industry
/ Equipment protection
/ Water tank, water treatment equipment
/ Chemical container, medicine and food packaging
/ Gas transportation, drainage, agricultural irrigation
/ Outdoor recreational facility
/ Indoor furniture
/ Sports venues
/ Carved sign
/ Payground equipment
/ Decorative elements
/ Prototype

Thickness range: 6mm~25mm

Width max.: 2000mm

Length: Any length

Standard sizes: 1220X2440; 1000X2000; 1200X2400

We can also provide any other sizes according to your special needs.

1220x2440mm; thickness 10mm,12mm,15mm,18mm,19mm,20mm

Colour: Red/Yellow/Red, Blue/Black/Blue, Blue/Yellow/Blue, Green/Purple/Green, Purple/Black/Purple, Red/Yellow/Red, White/Black/White

If you don't need the layered colours we also supply a solid coloured board/sheets too.

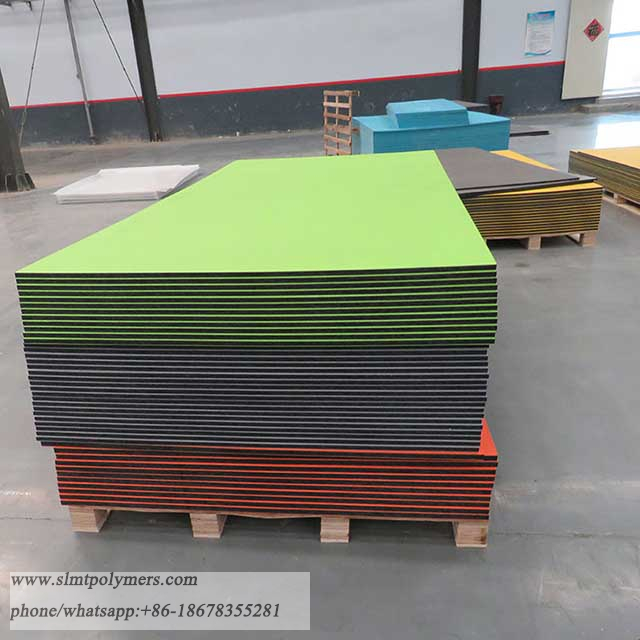

Dual layer HDPE sheet colored HDPE sheet /two colors three layers extrude HDPE sheets / sandwich 3 layers double HDPE

Advantage of Hdpe Sheet:

--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--Superior impact resistant, Noise- absorption, Vibration-absorption
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Light weight and easier to handle and fix
--Cost efficient; Resulting in low energy consumption
--Does not rot, split or crack; 100% recyclable
--Great liner material for industrial material handling applications
--Easy Reprocessed plastic ground protection mat
-- Creates an instant roadway over virtually any type of terrain – Mud, sand, marshy,
uneven or soft terrain
--Extremely durable to withstand vehicle weights up to 80 tons
--Tested in extremes of hot and cold climates

Plastic HDPE Texture Sheet 4′x8′with Skin of Orange Three Color 15mm 19mm UV Stable Orange Peel Texture Dual Color Triple Layers Sandwich HDPE Plastic Sheet
