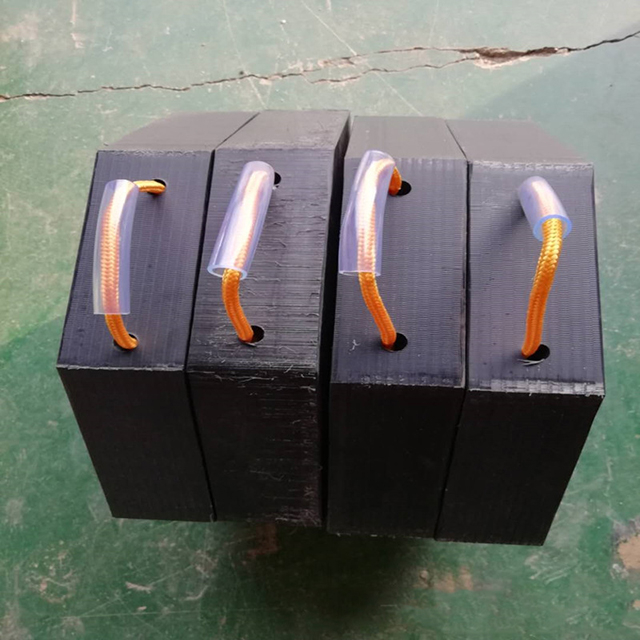

Crane UHMWPE Polymer Block Mats Plate Pads

Langrui engineered plastic cribbing plates and outrigger pads are lightweight, strong, and solid designed tu support your crane, and can be easily handled and positioned byp one persn or two. It can not be warped like wood or corroded like steel. It won't break in the long guaranteed time and obviously could not attract thieves.
Availability:

Crane UHMWPE Polymer Block Mats Plate Pads


Advantages of  Outrigger Pads :

  1.  Do not absorb moisture and will not swell up over time due to exposure outdoors.
    2.  Good impact intensity, Do not lose their impact strength over time.
    3.  Good breaking elongation,so they will bend but not break under extreme loads.
    4.  Non-stick surface, easy to clean.
    5.  Corrosion and chemical resistant.
    6.  Can work in in adverse weather conditions.
    7.  Durable & Long Lasting, Cost Efficient compared to Steel or Aluminum.
    8.  Amazingly light compared to steel pads, and easier to mount, replace.
    9.  Will not rot,crack,splinter, or absorb moisture, safer to use in the field compared to other wood based pads.
    10.Lower maintenance costs.
    11.Storage-Friendly.


    Product Description:
    100% Pure Raw Material UHMWPE HDPE Customized Size Crane Outrigger Pads
    Square Outrigger Pad
    Round/Square Outrigger Pad


    Common size
    Loading capacity for crane feed
    Common size
    Loading capacity for crane feed
    300*300*40mm
    3-5 tons
    300*40mm
    2-6 tons
    400*400*40mm
    4-6 tons
    400*40mm
    3-7 tons
    400*400*50mm
    6-10 tons
    500*40mm
    4-8 tons
    500*500*40mm
    10-12 tons
    500*50mm
    8-12 tons
    500*500*50mm
    12-15 tons
    600*40mm
    10-14 tons
    500*500*60mm
    13-17 tons
    600*50mm
    12-15 tons
    600*600*40mm
    15-18 tons
    600*60mm
    15-20 tons
    600*600*50mm
    16-20 tons
    700*50mm
    22-30 tons
    600*600*60mm
    18-25 tons
    700*60mm
    25-32 tons
    700*700*60mm
    25-35 tons
    700*70mm
    30-35 tons
    800*800*70mm
    30-45 tons
    800*70mm
    40-50 tons
    1000*1000*80mm
    50-70 tons
    1000*80mm
    45-60 tons
    1200*1200*100mm
    60-100 tons
    1200*100mm
    50-90 tons
    1500*1500*100mm
    120-180 tons
    1500*100mm
    80-150 tons
    Customized size and shape on demand
