Crane Outrigger Pads for Lifting Equipment And Heavy Truck

Langrui engineered plastic cribbing plates and outrigger pads are lightweight, strong, and solid designed tu support your crane, and can be easily handled and positioned byp one persn or two. It can not be warped like wood or corroded like steel. It won't break in the long guaranteed time and obviously could not attract thieves.
Availability:

Crane Outrigger Pads for Lifting Equipment And Heavy Truck


Advantages of  Outrigger Pads :

 Do not absorb moisture and will not swell up over time due to exposure outdoors.
2.  Good impact intensity, Do not lose their impact strength over time.
3.  Good breaking elongation,so they will bend but not break under extreme loads.
4.  Non-stick surface, easy to clean.
5.  Corrosion and chemical resistant.
6.  Can work in in adverse weather conditions.
7.  Durable & Long Lasting, Cost Efficient compared to Steel or Aluminum.
8.  Amazingly light compared to steel pads, and easier to mount, replace.
9.  Will not rot,crack,splinter, or absorb moisture, safer to use in the field compared to other wood based pads.
10.Lower maintenance costs.
11.Storage-Friendly.

Polyethylene outrigger pads with a load capacity of 4 tons to 300 tons Non-slip padsPerformance Analysis of Outrigger PadsIntroduce the necessity of choosing outrigger padsSpecifications for the use of trapezoidal outrigger pads

Product Description:
100% Pure Raw Material UHMWPE HDPE Customized Size Crane Outrigger Pads

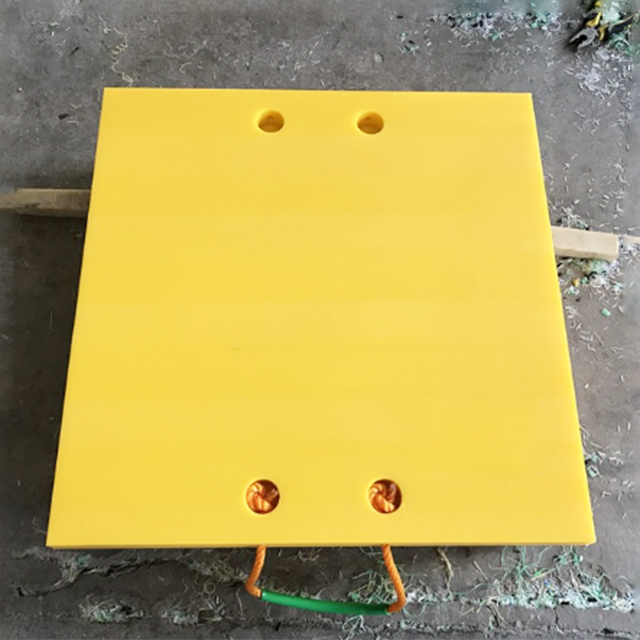

Square Outrigger Pad
Round/Square Outrigger Pad


Common size
Loading capacity for crane feed
Common size
Loading capacity for crane feed
300*300*40mm
3-5 tons
300*40mm
2-6 tons
400*400*40mm
4-6 tons
400*40mm
3-7 tons
400*400*50mm
6-10 tons
500*40mm
4-8 tons
500*500*40mm
10-12 tons
500*50mm
8-12 tons
500*500*50mm
12-15 tons
600*40mm
10-14 tons
500*500*60mm
13-17 tons
600*50mm
12-15 tons
600*600*40mm
15-18 tons
600*60mm
15-20 tons
600*600*50mm
16-20 tons
700*50mm
22-30 tons
600*600*60mm
18-25 tons
700*60mm
25-32 tons
700*700*60mm
25-35 tons
700*70mm
30-35 tons
800*800*70mm
30-45 tons
800*70mm
40-50 tons
1000*1000*80mm
50-70 tons
1000*80mm
45-60 tons
1200*1200*100mm
60-100 tons
1200*100mm
50-90 tons
1500*1500*100mm
120-180 tons
1500*100mm
80-150 tons
Customized size and shape on demand
