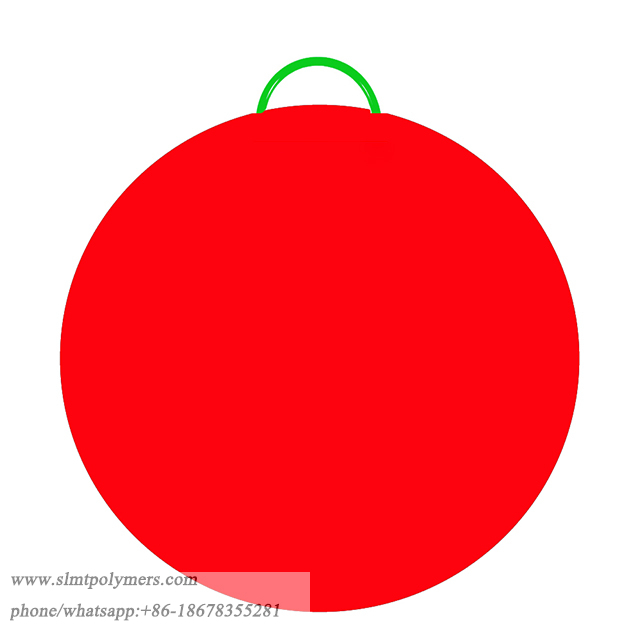

China Supplier Round Outrigger Pads

Langrui engineered plastic cribbing plates outrigger pads help Prevent Jack and Hydraulic Outrigger from Tipping or Slipping!
Ideal for protecting concrete, paved, and other surfaces.
Availability:
Inquire Add to Basket

Plastic Material: constructed from quality polyethylene, these 2 RV pads with handles in a package are built to last, and resist wearing and tearing; These pads can withstand heavy loads and provide stability for your vehicle, keeping your vehicle safe and secure.


Large Load Carrying Capacity: the 2 stabilizer jack pads with handles have a large load carrying capacity; Despite being lightweight, they can carry a large weight without buckling or giving way, putting you at ease, knowing that your vehicle or machinery is standing on solid ground.


Product Description:

100% Pure Raw Material UHMWPE HDPE Customized Size Crane Outrigger Pads
Square Outrigger Pad Round/Square Outrigger Pad

Common size Loading capacity for crane feed Common size Loading capacity for crane feed
300*300*40mm 3-5 tons 300*40mm 2-6 tons
400*400*40mm 4-6 tons 400*40mm 3-7 tons
400*400*50mm 6-10 tons 500*40mm 4-8 tons
500*500*40mm 10-12 tons 500*50mm 8-12 tons
500*500*50mm 12-15 tons 600*40mm 10-14 tons
500*500*60mm 13-17 tons 600*50mm 12-15 tons
600*600*40mm 15-18 tons 600*60mm 15-20 tons
600*600*50mm 16-20 tons 700*50mm 22-30 tons
600*600*60mm 18-25 tons 700*60mm 25-32 tons
700*700*60mm 25-35 tons 700*70mm 30-35 tons
800*800*70mm 30-45 tons 800*70mm 40-50 tons
1000*1000*80mm 50-70 tons 1000*80mm 45-60 tons
1200*1200*100mm 60-100 tons 1200*100mm 50-90 tons
1500*1500*100mm 120-180 tons 1500*100mm 80-150 tons
Customized size and shape on demand


Ultra High Molecular Weight Polyethylene Sheet Crane Outrigger Plate Polyethylene PadPolyethylene outrigger pads with a load capacity of 4 tons to 300 tons Non-slip pads
