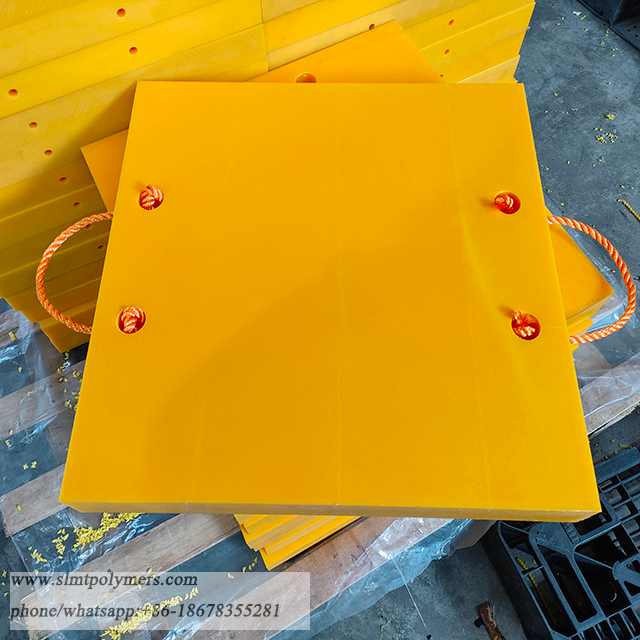

Anti Slip High Load-bearing Leg Pad Crane Outrigger Pads

Langrui engineered plastic cribbing plates and outrigger pads are lightweight, strong, and solid designed tu support your crane, and can be easily handled and positioned byp one persn or two. It can not be warped like wood or corroded like steel. It won't break in the long guaranteed time and obviously could not attract thieves.
Availability:
Inquire Add to Basket

In the fields of modern construction engineering and heavy logistics, the use of large tonnage cranes and pump trucks is becoming increasingly widespread, as they undertake major tasks such as lifting, transporting, and pouring concrete. In order to ensure the stability and safety of these heavy machinery during operation, outrigger pads have become an indispensable key component.


Crane Outrigger Pads
Square Outrigger Pad Round/Square Outrigger Pad

Common size Loading capacity for crane feed Common size Loading capacity for crane feed
300*300*40mm 3-5 tons 300*40mm 2-6 tons
400*400*40mm 4-6 tons 400*40mm 3-7 tons
400*400*50mm 6-10 tons 500*40mm 4-8 tons
500*500*40mm 10-12 tons 500*50mm 8-12 tons
500*500*50mm 12-15 tons 600*40mm 10-14 tons
500*500*60mm 13-17 tons 600*50mm 12-15 tons
600*600*40mm 15-18 tons 600*60mm 15-20 tons
600*600*50mm 16-20 tons 700*50mm 22-30 tons
600*600*60mm 18-25 tons 700*60mm 25-32 tons
700*700*60mm 25-35 tons 700*70mm 30-35 tons
800*800*70mm 30-45 tons 800*70mm 40-50 tons
1000*1000*80mm 50-70 tons 1000*80mm 45-60 tons
1200*1200*100mm 60-100 tons 1200*100mm 50-90 tons
1500*1500*100mm 120-180 tons 1500*100mm 80-150 tons
Customized size and shape on demand
